3 Inch Round TFT LCD Display 480x480 RGB 24 Bit SPI Interface 450 CD/M2

Product Categories
HuaXin Technology CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

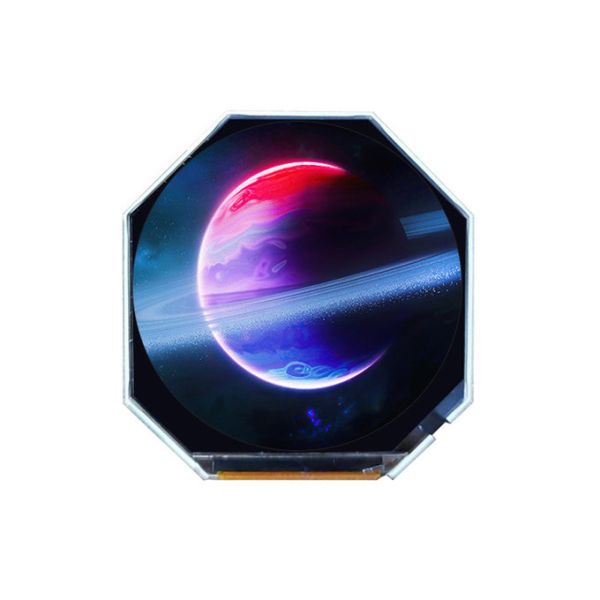

3 Inch Round TFT LCD Display 480x480 RGB 24 Bit SPI Interface 450 CD/M2

Brand Name : HuaXin

Model Number : ESHX300RAN18A

Certification : ISO14001/ ISO9001/IATF16949

Place of Origin : China

MOQ : 1000

Price : $3-$5

Payment Terms : T/T

Supply Ability : 500K pcs per month

Delivery Time : 4~6weeks

Packaging Details : blister+foam box+bubble bag+inside carton+master carton

Display Technology : TFT module

Name : tft panel

Display size : 3.0 inch

Resolution : 480*480

interface : RGB 24 bit +SPI

Driving IC : HX8369A

Brightness : 450C/D

view angle : all

Contact Now

3-Inch Round Industrial Display | 480×480 Resolution, 24 Bit SPI Interface, 450cd/m² Brightness, Anti-Glare for Control Panels & Smart Meters

Technical Specifications
Display Technology TFT module
Display Size 3.0 inch
Resolution 480*480
Interface RGB 24 bit +SPI
PIN number 41 PINS
Driving IC HX8369A
Brightness 450C/D
View Angle All
Part No. ESHX300RAN18A
Outline Size (mm) 58.01x61.38x2.45mm
Working Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C
Product Images
3 Inch Round TFT LCD Display 480x480 RGB 24 Bit SPI Interface 450 CD/M2
3 Inch Round TFT LCD Display 480x480 RGB 24 Bit SPI Interface 450 CD/M2
3 Inch Round TFT LCD Display 480x480 RGB 24 Bit SPI Interface 450 CD/M2
3 Inch Round TFT LCD Display 480x480 RGB 24 Bit SPI Interface 450 CD/M2
Manufacturer Advantages
  • Cost-effective production facility in inland China
  • Advanced equipment ensuring stable product quality
  • Automated manufacturing processes for efficiency and consistency
  • Experienced engineering team with 20+ years in LCD technology
  • Custom design capabilities for specialized requirements
About Huaxin Technology (Enshi) Co., LTD

Established in 2009 and located in Hubei Enshi, Huaxin Technology is a high-tech enterprise specializing in LCD, LCM, TFT, backlight, and OLED research, development, and production.

Product Range
  • VA, TN, HTN, STN, FSTN, CSTN LCD series
  • COB, TBA, COG, TP, LED backlight LCM series
Company Details
Registered capital 20 million
Staff 500+ (10% R&D, 15% QC)
Certifications ISO14001, ISO9001/IATF16949, SGS
Production Capacity (k/Day)
Product 2021 2022 2023 2024 2025
LCD 4.5 9 9 9 9
LCM 70 150 300 450 450
Backlight 100 200 300 500 500
OLED 10 20 30 40 50
Applications
  • Car navigation systems & printers
  • Video communication & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Characteristics
  • Excellent image quality with high resolution and color accuracy
  • Fast response times for smooth transitions
  • Wide viewing angles with minimal color shift
  • Energy efficient operation
  • Available in various sizes for different applications
  • LED backlighting for consistent illumination
TFT Display Limitations
  • Viewing angles may be limited compared to other technologies
  • Moderate contrast ratios
  • Backlighting increases power consumption
  • Potential motion blur in fast-moving content
  • Limited flexibility in physical form
  • Color gamut may be narrower than some alternatives
3 Inch Round TFT LCD Display 480x480 RGB 24 Bit SPI Interface 450 CD/M2
